Dev HUD pins one acrylic board to your desktop with your Claude and Codex rate limits, your repositories’ CI, and your machine’s health on it — live, read-only, and always under your windows. No account, no telemetry, nothing to configure.
Windows 10 & 11 only·no macOS or Linux build yet

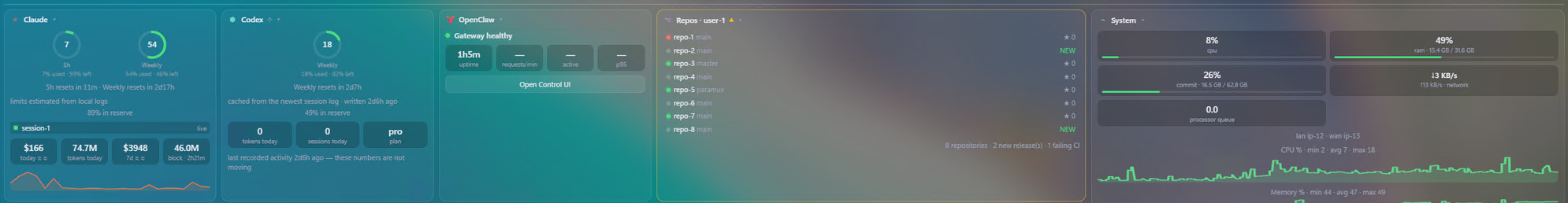

Swipe the board →
The four questions
Dev HUD turns the checks that break your focus into one quiet, live surface.
Live 5hand weekly rate-limit rings use real percentages from the OAuth usage API, not log estimates. See today’s token and cost burn, the active block countdown, a 24h sparkline, per-model usage, and the sessions working now with their project and freshness.
5hand weekly rings, reset countdowns, and plan information come from Codex’s own session logs. An on-pace or over-pace read tells you whether the current allowance will make it to reset.
Repositories are discovered from your ghCLI account, with no watch list to maintain. GitHub’s open_issues_count includes pull requests; Dev HUD subtracts them. Each row also carries CI, stars, and the latest release with a NEW badge when something ships.
CPU, RAM, commit charge, and network throughput stay visible on the System card. Disks, thermals, GPU, and network quality are one card away when those collectors are available.
A canvas, not a grid
Drag by the grip. Resize independently from the right edge, bottom edge, or corner. Another card’s edge is the only boundary: occupied drops slide as far as they fit and park without swapping or reflowing. A red outline marks taken space, a dashed ghost previews the landing, and locking makes the whole board read-only.
Information density
Each card responds to its own measured box.
Showing cards at standard density.
Drag by the grip.
Cards park. Nothing swaps.
Resize from any edge.
The nearest free space wins.
A dashed ghost previews the landing.
Each card measures its own box.
Taken space turns the outline red.
Detected, not configured
Auto appears only when the capability is detected. On keeps it visible. Off hides it and never polls it. The first run lists exactly what Dev HUD found, so a machine without an NVIDIA GPU never gets a broken-looking GPU card. Zero configuration out of the box.
Detection controls the starting board. You remain in control of what stays visible and what is allowed to poll.
Five-hour and weekly OAuth rings, burn, countdown, model split, and sessions.
Five-hour and weekly rings from session logs, resets, plan, pace, and sessions.
Health, latency, uptime, memory, CPU, and a jump to the Control UI.
gh-discovered CI, pull requests, corrected issue counts, stars, and releases.
CPU, RAM, commit charge, network throughput, and LAN/WAN addresses.
Connection state, tailnet address, MagicDNS name, and peers online.
Containers, status, ports, and an honest daemon-not-running state.
nvidia-smi utilization, VRAM, temperature, power, clocks, fan, and processes.
Package, core, and fan readings, ACPI fallback, and honest setup states.
Per-volume capacity plus live read and write throughput.
Ping, jitter, loss with TCP fallback, plus Wi-Fi signal, SSID, and link rate.
Listening TCP ports mapped to owners, local endpoints, and process badges.
Distro state, vmmem cost, per-distro terminate, and shut down all.
Charge, AC state, runtime, and power plan; auto-hidden on desktops.
Uptime, boot time, and pending-reboot registry markers.
Available winget upgrades refreshed on a six-hour cadence.
On-demand Cloudflare download, upload, and latency test.
Loaded models, VRAM, unload countdown, and installed model count.
Claude Desktop, Claude Code, and Codex servers matched to live processes.
node, bun, and deno with identity-safe kills, orphan detection, and idle timers.
Your collector
The versioned, sandboxed contract accepts an argv array, never a shell; a local file; or a loopback HTTP endpoint returning schema-validated JSON. Timeouts, output-size limits, sanitised text-only rendering with no HTML, and an honest error state keep custom data inside the same rules as every built-in card.
Read the custom card contractLiving with it
Acrylic glass over your wallpaper, pinned beneath every window you open. It's there when you glance down and invisible when you're working.
Always visible under your windows, never in the way. Three layering modes from the tray — pinned to desktop, normal window, or always on top. A focus-lost handler re-sinks the widget so Windows can't float it mid-stack after you interact with it.
Window position and every card rectangle persist across restarts. The lock — in the header or from the tray — disables dragging, so a stray mouse can't move it. Locking also makes the board read-only.
Tauri 2, Rust and React 19 on the system WebView2. Polling is per-card configurable, slows down while the HUD is hidden, and backs off expensive collectors on battery. Cards you switch off are never polled at all.
Every card folds to a one-line summary — spend today, percent used, gateway latency — and remembers its state. Named profiles capture visible cards, layout, sizes, poll intervals, opacity, layering, privacy and alert rules.
Built-in profiles
The operator console
The board is not a wall of disconnected gauges. Each answer leads directly to the next, from the first abnormal signal to a verified recovery.
Status semantics
Every card reports health, activity, attention, and freshness independently, because collapsing them into one dot is how stale gets mistaken for broken.
Nothing is signalled by colour alone. Every badge carries a glyph, a label, and an accessible description.
“Empty” distinguishes a valid zero, not configured, not installed, unsupported on this host, permission denied, and collector failure. Each state explains itself and offers the action that fixes it.
One row pattern, everywhere
A labelled action costs roughly 90px of permanent width. A Ports row used to carry three. Cards had to be half the screen wide before anything fit.
Actions moved into the inspector. At most one icon survives inline, and only when it is the row’s obvious verb.
Choose a width or drag the lower-right edge to narrow the row.Responsive row, shown at this container width.
container queryThe row sheds badges first, then the secondary qualifier, then the second metric. The primary identifier never disappears; it truncates with an ellipsis, while the full value remains in the tooltip and inspector. Numbers never truncate. They stay fixed-width, right-aligned, and tabular.
Keyboard
pid:18789, port:5434, repo:name, mcp:name, or any command by name.Destructive commands are labelled and require Enter twice.
Inspector
any card · Enter on focus
Linked in both directions
port → owning process → working directory → repository → agent session → the MCP server it spawned
Nothing is a database. The graph is rebuilt from every poll, so a dead PID can never linger as a phantom edge.
Alerts that behave like alerts
A threshold crossing is not a disposable toast. Dev HUD models escalation, recovery, suppression, and the evidence needed after the machine looks normal again.
Rule anatomy
Warning and critical tiers each account for time. Recovery uses a separate threshold and dwell period. Cooldowns and quiet hours suppress repetition. Composite rules can require two conditions at once.
A real rule
Warn when packet loss > 5% for 90 s. Critical when > 12% for 30 s. Recover when it stays under 2% for 60 s. Don’t re-notify for 15 minutes unless it gets worse.
Persistent alert records
The underlying alert survives dismissal and restart. Escalation breaks through a cooldown, an acknowledgement, or a snooze. Getting worse is always news.
Timeline
The event stream reads as a story. Repeated samples disappear; state changes remain in the order an operator needs to reconstruct what happened.
Network packet loss crossed 10%
newest: most recent eventTailscale switched from direct to relay
Process 18789 became orphaned
Docker container restarted
Critical incident snapshot
When a critical alert opens, Dev HUD can freeze a redacted snapshot locally. The post-mortem remains possible after every live metric has recovered.
Local and redacted. Retention is capped by both count and bytes.
Where the data comes from
Dev HUD names the command, file, endpoint, or operating-system API behind every card. The implementation details are part of the trust model.
| Card | Source | What Dev HUD does with it |
|---|---|---|
| Claude | ~/.claude/projects/**/*.jsonl + api.anthropic.com/api/oauth/usage | Local scans dedupe by message.id + requestId because resumed sessions copy history. Costs are API-equivalent estimates. The OAuth token is read-only, never refreshed or stored; active sessions come from transcripts written in the last 10 min. |
| Codex | ~/.codex/sessions/YYYY/MM/DD/rollout-*.jsonl | Each session’s last token_count carries cumulative tokens and the freshest rate_limits. Tail reads are 256 KB with mtime-keyed caching; active sessions use rollout mtimes and session_meta cwd. |
| OpenClaw | GET http://127.0.0.1:{port}/health + process scan | Port order is OPENCLAW_GATEWAY_PORT → gateway.port in ~/.openclaw/openclaw.json → 18789. The documented /health endpoint creates no session per poll. |
| Repos | GitHub REST API via gh CLI auth | Uses gh auth token, with environment fallback. Owner repositories are auto-discovered by recent pushes. Issue counts subtract pull requests because GitHub’s open_issues_count includes them. |
| System | sysinfo + K32GetPerformanceInfo | CPU, RAM, network rates, LAN and cached WAN IP. Commit charge is the number task managers call swap/pagefile on Windows; the LAN lookup uses a UDP connect without sending a packet. |
| Tailscale | tailscale status --json | Backend state, tailnet IPv4, MagicDNS name, and peers online versus total. |
| Docker | docker ps --format "{{json .}}" | Distinguishes not installed, daemon down, and running containers. |
| GPU | nvidia-smi --query-gpu=… --format=csv + pmon -c 1 -s m | Every field is optional; [N/A] is normal. An 8 s kill timeout guards broken drivers. |
| Thermals | LHM :8085/data.json → WMI MSAcpi_ThermalZoneTemperature | WMI runs on one dedicated bridge thread because COM is not Send. The widget never elevates. |
| Disks | sysinfo + Win32_PerfFormattedData_PerfDisk | Formatted counters are already rates. |
| Net quality | ping.exe / TCP:443 fallback + netsh wlan | Locale-proof ping parsing with a TCP fallback when ICMP is blocked. A 20-sample window tracks average, jitter, and loss. |
| Ports | GetExtendedTcpTable (via listeners) | Feeds clickable listening-port badges into the Processes card. |
| WSL | wsl -l -v (UTF-16LE decoded!) | vmmem RAM comes from the shared process table. |
| Battery / Uptime | Win32_Battery + powercfg / registry reboot markers | The battery card auto-hides when no battery exists. |
| Updates | winget upgrade | Columns are located by header offsets because headers localize. |
| Speedtest | speed.cloudflare.com/__down / __up | On-demand only. |
| Ollama / MCP | :11434/api/ps + tags / Claude+Codex config files | MCP running state is matched against live command lines. |
| Processes | sysinfo snapshot | A long-lived scanner derives meaningful CPU deltas. Kills verify (pid, start_time), so a recycled PID is never terminated. |
~/.claude/projects/**/*.jsonl + api.anthropic.com/api/oauth/usageLocal scans dedupe by message.id + requestId because resumed sessions copy history. Costs are API-equivalent estimates. The OAuth token is read-only, never refreshed or stored; active sessions come from transcripts written in the last 10 min.
~/.codex/sessions/YYYY/MM/DD/rollout-*.jsonlEach session’s last token_count carries cumulative tokens and the freshest rate_limits. Tail reads are 256 KB with mtime-keyed caching; active sessions use rollout mtimes and session_meta cwd.
GET http://127.0.0.1:{port}/health + process scanPort order is OPENCLAW_GATEWAY_PORT → gateway.port in ~/.openclaw/openclaw.json → 18789. The documented /health endpoint creates no session per poll.
GitHub REST API via gh CLI authUses gh auth token, with environment fallback. Owner repositories are auto-discovered by recent pushes. Issue counts subtract pull requests because GitHub’s open_issues_count includes them.
sysinfo + K32GetPerformanceInfoCPU, RAM, network rates, LAN and cached WAN IP. Commit charge is the number task managers call swap/pagefile on Windows; the LAN lookup uses a UDP connect without sending a packet.
tailscale status --jsonBackend state, tailnet IPv4, MagicDNS name, and peers online versus total.
docker ps --format "{{json .}}"Distinguishes not installed, daemon down, and running containers.
nvidia-smi --query-gpu=… --format=csv + pmon -c 1 -s mEvery field is optional; [N/A] is normal. An 8 s kill timeout guards broken drivers.
LHM :8085/data.json → WMI MSAcpi_ThermalZoneTemperatureWMI runs on one dedicated bridge thread because COM is not Send. The widget never elevates.
sysinfo + Win32_PerfFormattedData_PerfDiskFormatted counters are already rates.
ping.exe / TCP:443 fallback + netsh wlanLocale-proof ping parsing with a TCP fallback when ICMP is blocked. A 20-sample window tracks average, jitter, and loss.
GetExtendedTcpTable (via listeners)Feeds clickable listening-port badges into the Processes card.
wsl -l -v (UTF-16LE decoded!)vmmem RAM comes from the shared process table.
Win32_Battery + powercfg / registry reboot markersThe battery card auto-hides when no battery exists.
winget upgradeColumns are located by header offsets because headers localize.
speed.cloudflare.com/__down / __upOn-demand only.
:11434/api/ps + tags / Claude+Codex config filesMCP running state is matched against live command lines.
sysinfo snapshotA long-lived scanner derives meaningful CPU deltas. Kills verify (pid, start_time), so a recycled PID is never terminated.
Standing promise
Everything is read-only. There is no maintainer analytics, tracking, account, or telemetry.
Privacy
Dev HUD is read-only by default. There is no maintainer analytics, tracking, account, crash reporting, or telemetry of any kind.
This is the complete list. Turn a collector’s card off and it is never polled.
Anthropic usage API
Claude rate limits, only while the Claude card is enabled.
GitHub API
Repository state, using the existing gh CLI session.
api.ipify.org
A cached public-IP lookup for the System card.
Configured ping target
Network quality; the default target is 1.1.1.1.
Cloudflare speedtest
Runs only when you explicitly request a speed test.
winget
Update checks and the confirmed LibreHardwareMonitor setup.
The Claude Code OAuth token is used read-only and is never refreshed or stored. GitHub authentication comes from your existing gh CLI session. Credentials go only to their own services and are never logged.
One toggle replaces IP addresses, hostnames, device and peer names, repository names, usernames, filesystem paths, process arguments, and session identifiers across cards, inspectors, alerts, the timeline, copied text, exports, and incident snapshots. Session-stable aliases such as ip-1 and repo-2 keep the HUD readable.
Blur was not an option, because the raw value must never survive in a tooltip, an accessibility label, or the clipboard.
Secrets and tokens are masked in every mode, not only privacy mode.
Screen-share preview
The same row, before and after redaction.
Safe actions
Every state-changing action is explicit, argument-validated, confirmed, time-bounded, and written to a local audit trail.
Nothing is interpolated into a shell: every process is spawned with an argv array, and identifiers are validated by grammar rather than a blocklist. Repository commit, push, reset, and discard actions are deliberately not implemented.
Download
Dev HUD is a Windows-only application. It installs per user on Windows 10 or 11 x64, needs no administrator rights, and WebView2 already ships with Windows 11. There is no macOS or Linux build yet.
Windows installer
Windows 10/11 x64 · per-user install
Requires Rust stable, Node 20+, and WebView2.
npm install
npm run tauri dev
npm test
npm run typecheck
cargo test --manifest-path src-tauri/Cargo.toml
npm run tauri buildDev HUD is Windows-first today. Linux and macOS builds are planned, not available; everything except acrylic and the kill probe is already cross-platform.
FAQ
The limitations are part of the product story. Here is what exists today and what still does not.
Yes. Dev HUD is free, open source, and MIT licensed.
There is no maintainer telemetry. The only external services are Anthropic’s usage API, the GitHub API, api.ipify.org, your configured ping target (1.1.1.1 by default), the on-demand Cloudflare speedtest, and winget update checks. Turn the related card off and that collector is never polled.
The installer is not code-signed yet, so SmartScreen warns on first run. Click More info → Run anyway.
The per-user Dev HUD install needs no administrator rights. The one exception is the optional guided LibreHardwareMonitor setup for full CPU thermals, which asks for one explicit UAC approval.
LibreHardwareMonitor loads the WinRing0 kernel driver, which Defender and HVCI flag on some machines. Bundling it would hurt the installer’s SmartScreen reputation, and a vendored copy would go stale while winget keeps its package current. The guided setup installs it only after you opt in. To remove its autostart task, run schtasks /Delete /TN LibreHardwareMonitor-DevHUD /F as an administrator.
No. Dev HUD follows your existing gh CLI account and discovers your repositories automatically.
Polling is configurable per card, slows while the HUD is hidden, and backs off expensive collectors on battery. Cards set to off are never polled. The Windows app is about 10 MB and is built with Tauri rather than Electron.
Not yet. Dev HUD is Windows-first today. Linux and macOS builds are planned, and everything except acrylic and the kill probe is already cross-platform.
Dev HUD puts AI-provider rate limits and repository state beside machine health on the Windows desktop layer. It answers those questions together, at a glance, instead of separating them across system tools and browser tabs.
Yes. Custom cards use a versioned, sandboxed contract for an argv command, local file, or loopback HTTP endpoint. Payloads are time-bounded, size-limited, schema-validated, and rendered as sanitized text only.
Read the custom-card contract →
